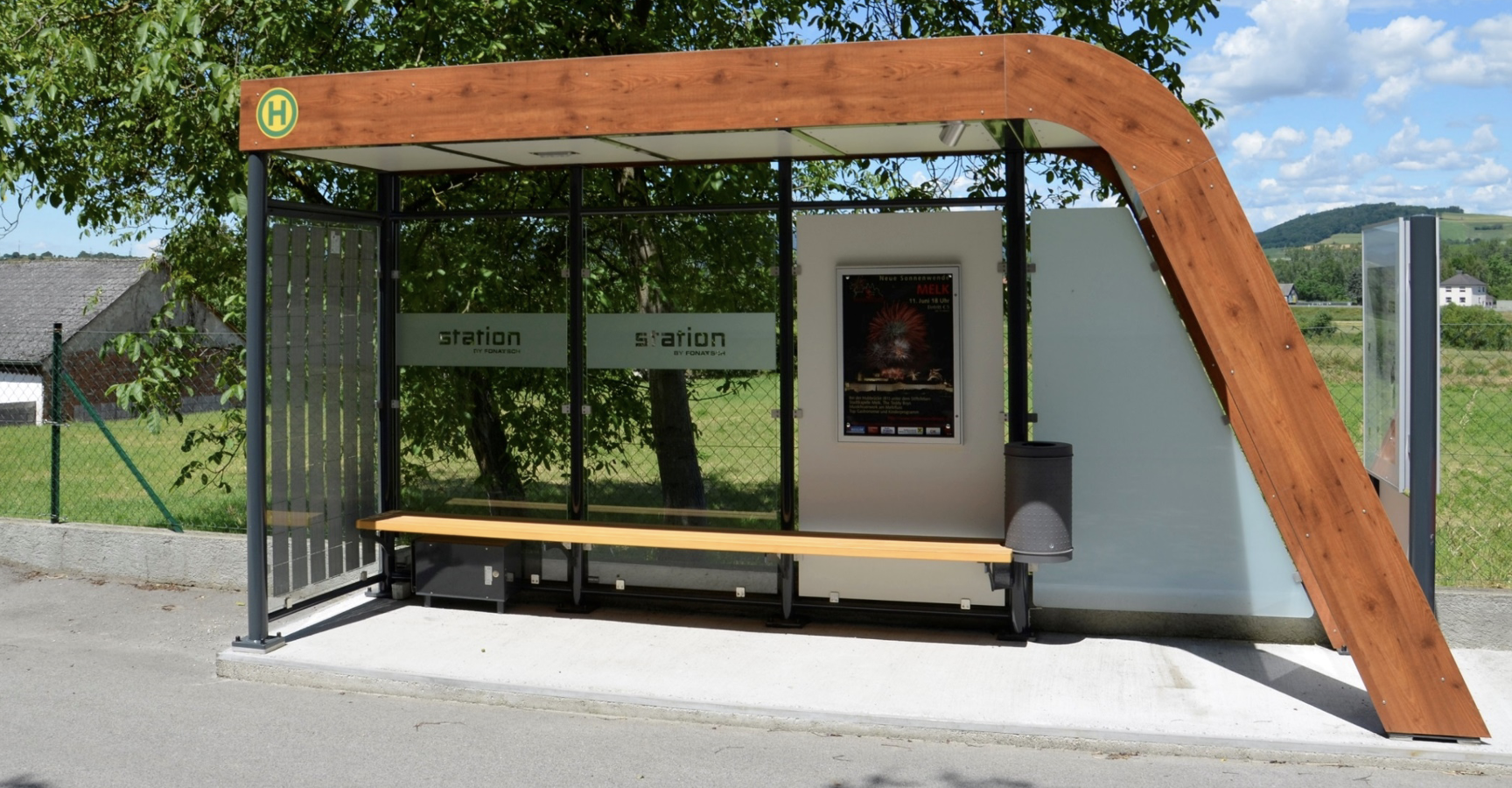

The high quality steel construction of this station BY FONATSCH is galvanised and coated, with a choice of maintenance free wood finish or other colors of your choice. The oiled beech bench is a piece of nature in perfect condition - hard-wearing and durable. The safety glass also combines these characteristics. stationCLASSIC is the intelligent, multifunctional and energy self-sufficient design bus stop of the future and can be modularly extended at any time.
Our station BY FONATSCH has already been honored several times with the "creative into the future" award and we also received the "VCÖ Mobility Award Lower Austria" for this innovative bus stop and waiting area.
stationCLASSIC - SBD-3:
- Galvanised steel construction and double coated in anthracite grey RAL 7016 (other RAL colors available on request)
- Panelling in Fundermax wood finish - TYROL pine (other finishes available on request)
- Optional design arch on left or right-hand side
- Stop sign
- Bench in oiled beech
- Safety glazing
Dimensions:
Length: 6,1 m
Depth: 1,6 m
Height: 2,8 m
Special dimensions available on request.
A foundation plan for the installation of the base plate can be provided on request.
Solar panel 300 Wp
Glass-Glass module installed with VSG
Dimensions: L x W x H: 2000 x 1200 x 9 mm
Construction: VSG according to ÖNORM B3716
Front: ESG 4 mm clear solar glass
Solar cells: polycrystalline, 156 x 156 mm
Cell matrix: 72 cells., 6 x 12
Cell spacing h/v: 30/2 mm
Encapsulation: EVA film
Back: TVG 4 mm clear
Junction box: Tyco IP65, Solarlok
Short module edge at the top
Solar connector: Tyco Slim 4 mm²
System voltage: max. 1000 V DC
Product warranty: 5 years
Solar electronics COPHCIS 10
MPPT charge controller with 10 A and light programming system for light time programming, system voltage 24V, PV power max. 300 W, integrated charge management with deep and overcharge protection, quiescent current consumption ‹10 mA, ambient temperature -40°C to +60°C; setting range for evening and morning light hours 0-15 h, integrated data logger 2 years for system analysis, protection class IP 68;
LED technology station
LED module with special lens optics for specific area lightning and illumination of the entire waiting area (illuminance approx.20 lux depending on charge level), thermal management for maximum service life up to 50.000 hours, light color 4000° Kelvin, Ra›70, light output at 10W: 1420 lumens, dimmable, IP 67, protection class III, Philips Lumiled Multichip technology
LED technology Infopoint
Linear LED light strip on flexible printed circuit board, IP66
- Months via 3M thermal adhesive tape
- LED lifetime LM 80-08/60.000 hours
- CE, LED-RoHs compliant
- Dimmable
- Rated voltage: 24V DC
- Color rendering index: Ra › 85
- Beam angle: 120°
- Dimensions: 8 x 1,5 mm
- Max. output: 5,3 W/m
- Color temperature: 4000K
- Luminous flux: 600 Im/m at 4000 K
- Efficiency: 113 Im/W
Illuminated Infopoint - display
The illuminated Infopoint can be opened on both sides. Aluminium display case with flush glass front with back-printed, bright passe-partout; hinged wing with gas pressure spring and security locks with 2 keys each, rear panel is magnetic in white, external dimensions 775 x 1120 mm, ESG 5 mm, LED interior lighting on both sides via LED strips, demand-responsive operation via central motion detector, light color 4000°K
LED electronics COS 6
LED driver with built-in motion detector with 60° viewing distance, 10% basic lighting and dimming up to 100% on motion detection, programmable via IR remote control. Smart mode: electronics reduce light output when battery power is low, allowing several weeks of weak sunlight to be bridged. Protection class IP 68, LED power adjustable from 0.1 - 3 A, ambient temperature from -35° C - +65° C, runtime after motion detection - adjustable up to 5 minutes.
Battery storage 1400 Wh
Maintenance-free solar gel batteries, specially designed for the requirements of solar off-grid applications, battery dimensions 25.9 x 16.9 x 17.8 cm, battery weight 2x approx. 20 kg, capacity at 20 hours discharge 60 Ah, maximum storage capacity of the battery system: 1400 Wh (corresponds to approx. 100 hours of light at 15 W power consumption), cycle stability: 2500 cycles at 25% discharge, 1100 cycles at 50% discharge, expected life: approx. four years, installed in a well-ventilated, lockable steel container under the seat. Optional: 2500 WhM battery storage
| Type | Arch | Technical drawing | Foundation plan |
|---|---|---|---|
| SBD-3R | right | PDF-download | PDF-download |
| SBD-3L | left | PDF-download | PDF-download |

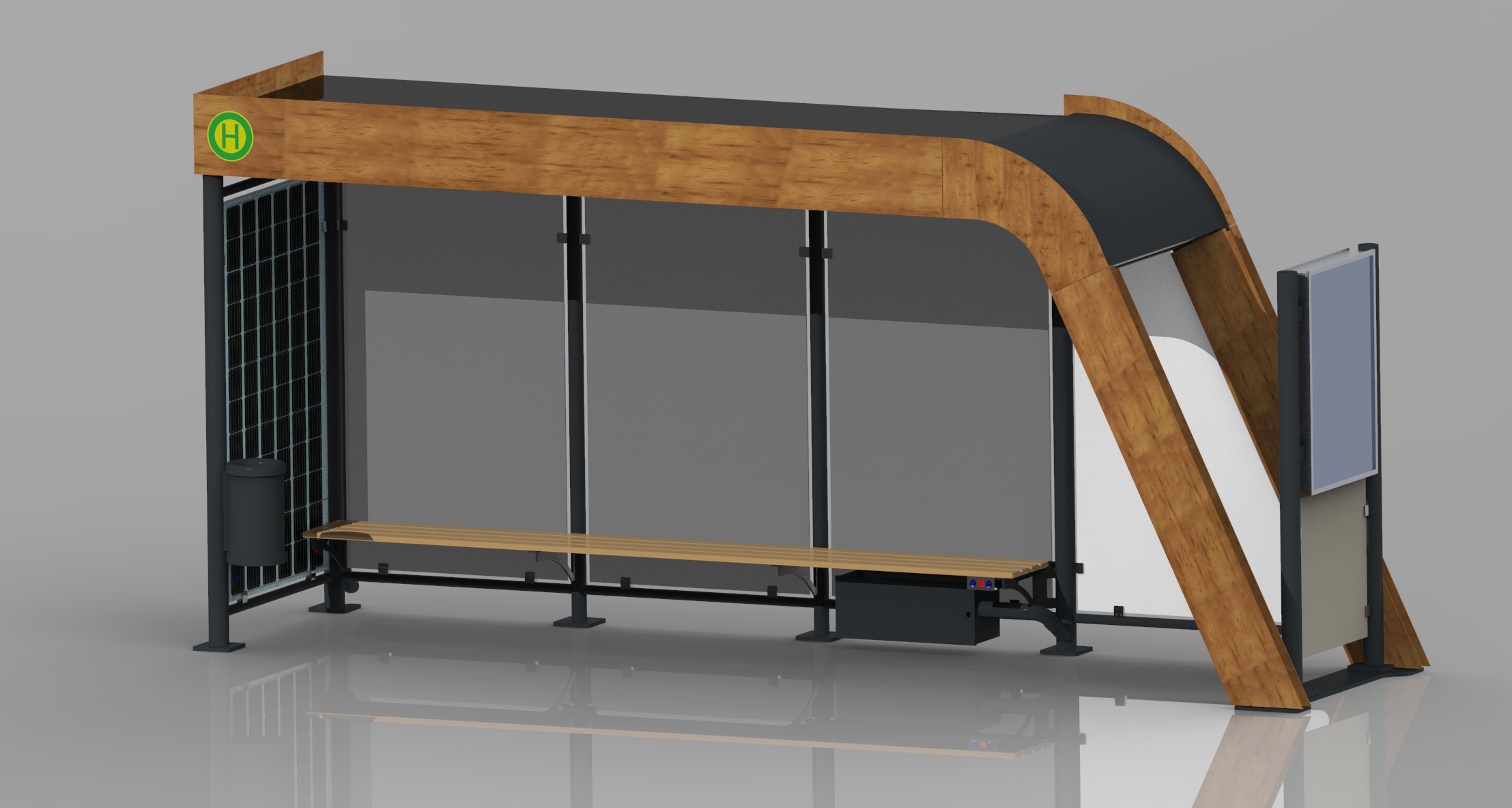

Technische Ansicht SBD-3R:
Technische Ansicht SBD-3L:
Photovoltaic
We use solar cells to convert sunlight into energy. The electricity generated is stored or used immediately. Photovoltaic technology is perfect for our energy self-sufficient waiting stations and bus stop shelters. We are not connected to the power grid. Photovoltaic modules help to reduce CO2 emissions and save costs, as there is no need for wiring and no external connection to the electricity grid.
Information system
Whether for timetables, community information, events or advertising. A station BY FONATSCH is equipped with a display panel. Each information point is well lightened, weatherproof and can be designed with glass and wood finishes.
USP connection
(optional)
We are always and everywhere connected. Modern communication has become an integral part of our daily life. One of the weak points of our mobile devices is often the battery. With this optional extension, devices can be recharged.
WLAN
(optional)
Fast connection to the world - wireless surfing. This optional add-on reduces waiting time. The world is changing and we are helping to shape it! Every station BY FONATSCH is a waiting area of the future!
E-bike charging station
(optional)
Go with the trend: This optional extension enriches your community! Every station BY FONATSCH can be extended with an e-bike charging station, turning your bus stop into a meeting point for active citizens and active tourists!
Safety | Lightning
(optional)
Illuminated objects are not only eye-catching, they also provide a sense of security and well-being. Waiting areas in particular should meet this need. Every station BY FONATSCH is equipped with intelligent lighting technology. Modern LED technology with optimised lens optics.
Barrier-free & optional add-ons
(optional)
It goes without saying that our product has no edges that might restrict wheelchair users. However, we also address special needs such as the visually disabled. As an option, we offer equipment with haptic elements. There is also a special visual impaired mode for displaying the information screen. The visually impaired mode is activated by pressing and holding the control button. After a preset time, the system returns to normal mode.
