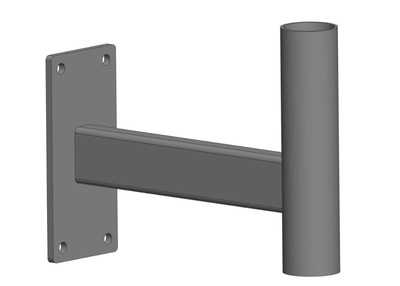

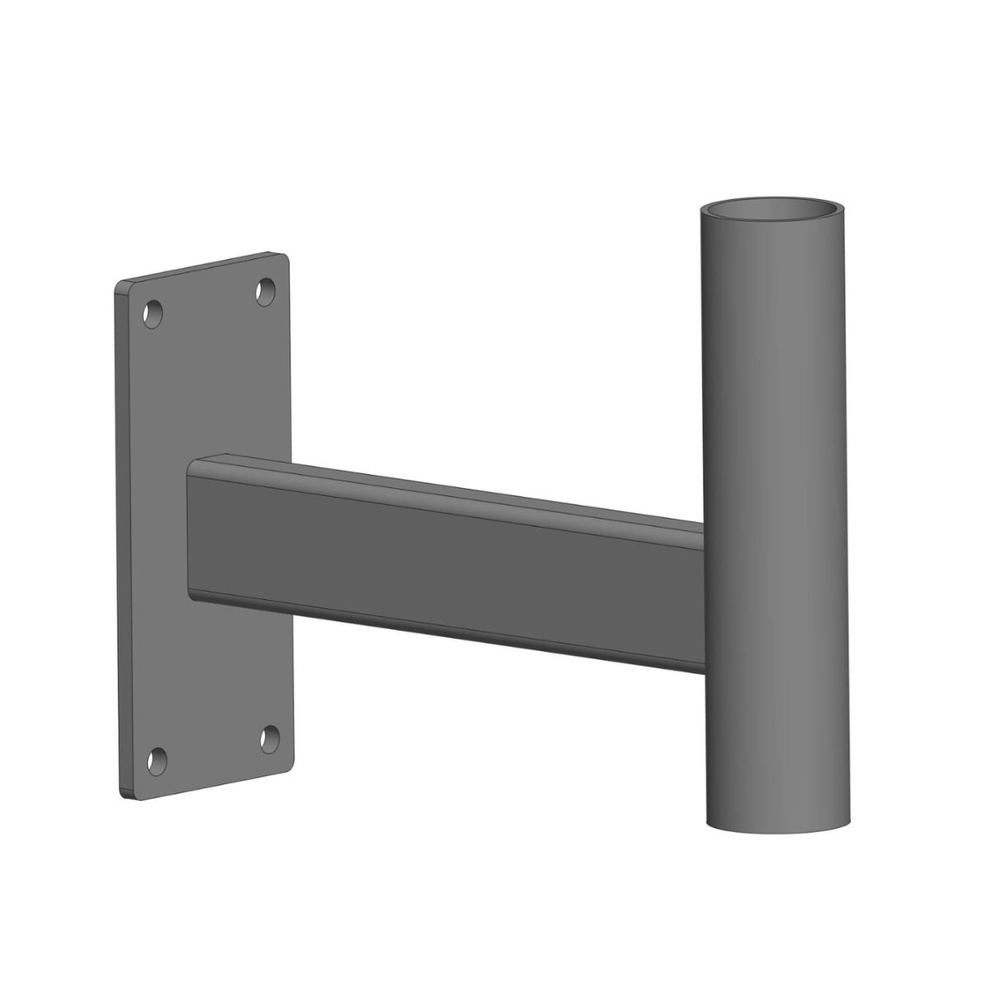

Wall bracket for top lights

For mounting post-top luminaires

Design:

  • Made of high quality steel tubes
  • Suitable for surface-mounted luminaires
  • Flange plate for wall mounting
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in  RAL and DB-colors of your choice possible

Application:

For mounting post-top lightning. Care must be taken to select the correct luminaire connection



Wall bracket for surface-mounted lights

Type

Projection (mm)

Weight (kg)

Technical
drawing

60-300

60-400

60-500

300

400

500

4,3

4,5

4,8

PDF

PDF

PDF
