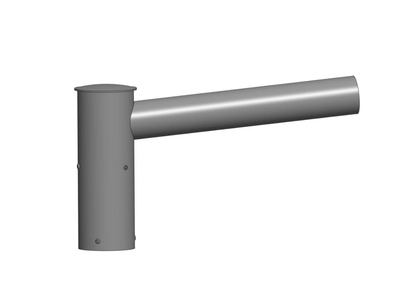

Mast top bracket 1-arm

Mast top and mast top brackets for mounting 1-arm

Design:

  • Made of high quality steel tubes
  • Inclination 5°
  • Suitable for bracket lights
  • Fastened to mast spigot with stainless steel locking screws
  • Inside and outside hot-dip galvanized in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible

Application:

Suitable for mounting on straight lightning poles

See "Details" for all types of mast tops, brackets and spigots with further technical details.

Mast top

Type Arm  bracket (mm)

for mast spigot
(mm)

Weight (kg) Technical drawing

AS1-60-60

AS1-60-76

1

1

60 x 250

60 x 400

60

76

2,8

4,0

PDF

PDF

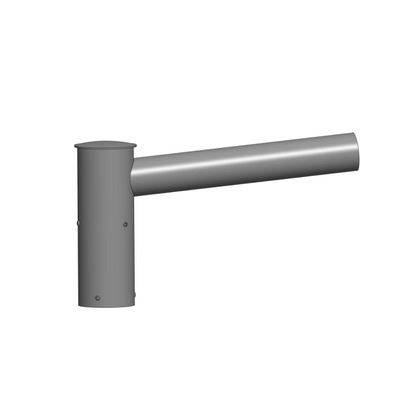

Mast top bracket

Type projection
(mm)
Arm

for mast spigot (mm)

Extension spigot Weight (kg) Technical drawing

AS1-76-05.

AS1-76-10.

AS1-76-15

500

1000

1500

1

1

1

76

76

76

A, E

A, E

A, E

4,5

6,4

9,7

PDF

PDF

PDF

Extension spigot

Type d2 x I2

A

E

42 x 100 mm

60 x 100 mm
