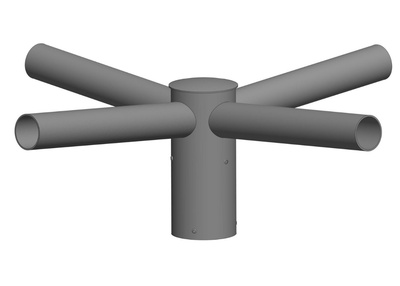

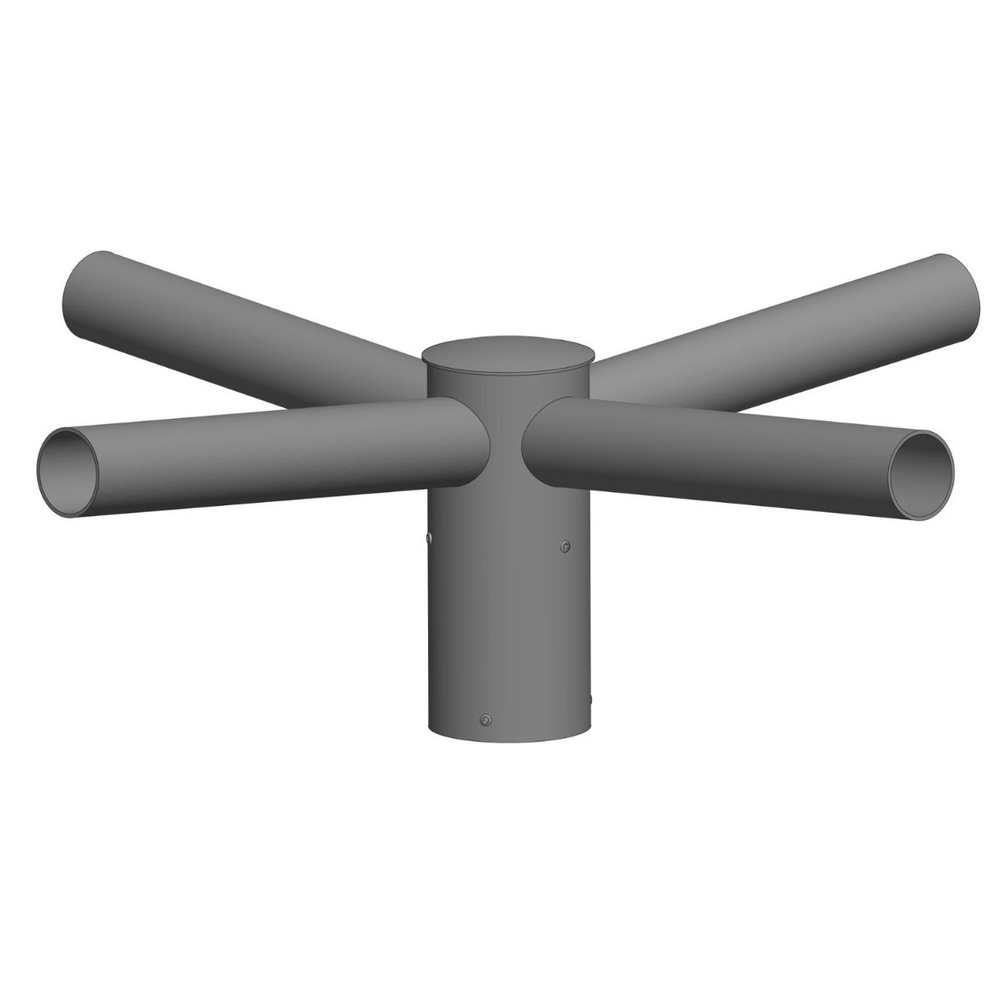

Mast top bracket 4-arm

Mast top and mast top brackets for mounting 4-arm

Design:

  • Made of high quality steel tubes
  • Inclination 5°
  • Position of bracket arms 4 x 90° to each other
  • Suitable for bracket lights
  • Fixed to the pole spigot with stainless steel locking screws
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating in RAL and DB colors of your choice possible

Grade position:

For 4-armed brackets, a degree position of 4 x 90° is provided

Application:

Suitable for mounting on straight lighting poles

See "Details" for all types of mast tops, brackets and spigots with further technical details.

Mast top

Type Arm bracket (mm) for mast spigot (mm) Weight (kg) Technical
drawing

AS4-60-108

4

60 x 400

108

9,6

PDF
