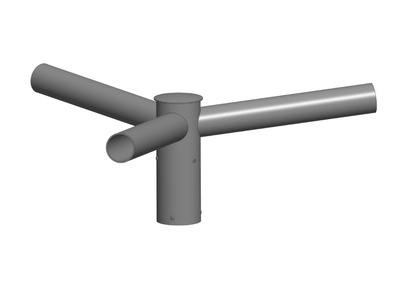

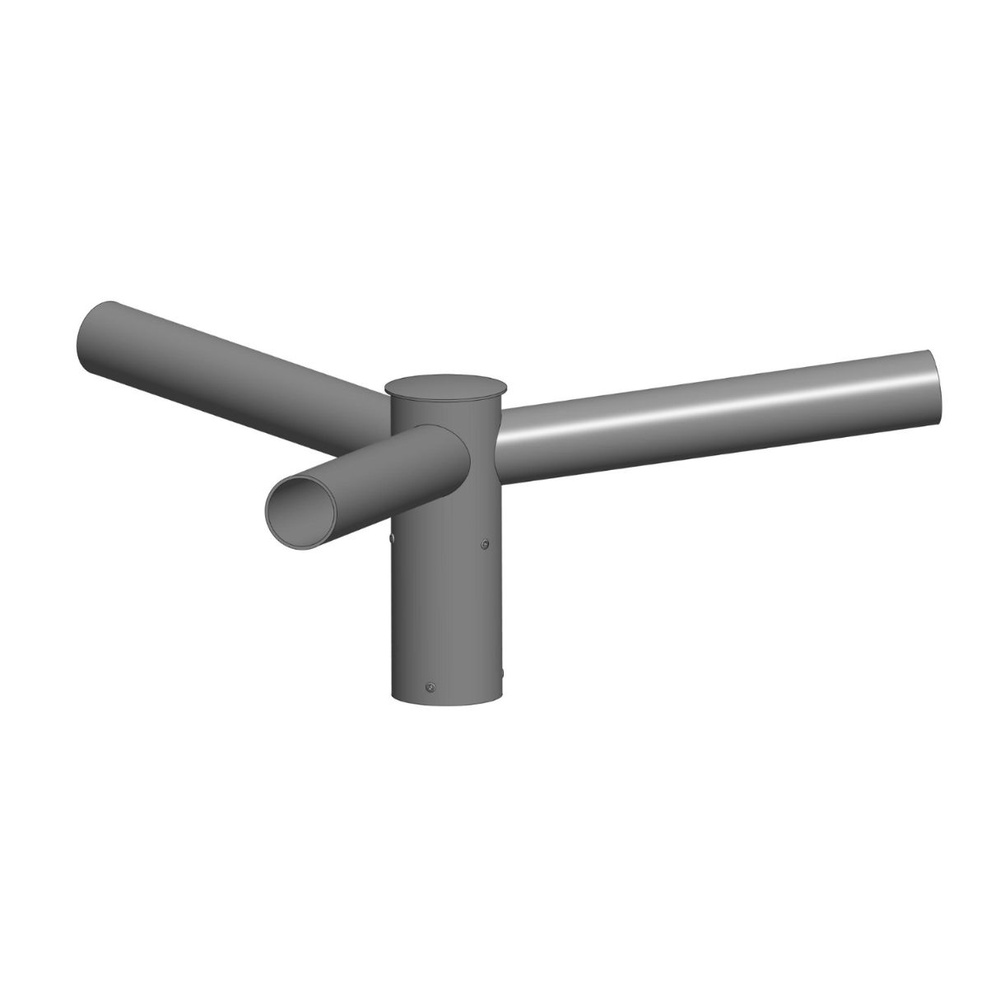

Mast top and mast top brackets for mounting 3-arm
Design:
- Made of high quality steel tubes
- Inclination 5°
- Position of bracket arms to each other 2 x 90° - 1 x 180° or 2 x 120°, further angle positions on request
- Suitable for bracket lights
- Fastened to pole spigot with stainless steel locking screws
- Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
- Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
- Additional coating in RAL and DB colors of your choice possible
Grade position:
For 3-arm brackets, the degree position mut also be specified in the type.
e.g.: AS3-60-76-90°, AS3-60-76-120°
Application:
Suitable for mounting on straight lighting poles
See "Details" for all types of brackets and extension spigots with further technical details
Mast top
| Type | Arm | bracket (mm) | for mast spigot (mm) | Weight (kg) | Technical drawing |
|---|---|---|---|---|---|
|
AS3-60-76 AS3-60-89 |
3 3 |
60 x 400 60 x 400 |
76 89 |
6,4 8,7 |
|
|
AS3-60-108 |
3 |
60 x 400 |
108 |
9,2 |
|
Mast top bracket
| Type | Projection (mm) |
Arm | for mast spigot (mm) | Extension spigot | Weight (kg) | Technical drawing |
|---|---|---|---|---|---|---|
|
AS3-76-05. AS3-89-10. AS3-108-10. |
500 1000 1000 |
3 3 3 |
76 76 108 |
A, E A, E A, E |
9,0 17,2 18,4 |
|
Extension spigot
| Type | d2 x I2 |
|---|---|
|
A E |
42 x 100 mm 60 x 100 mm |
Further extension spigot upon request
