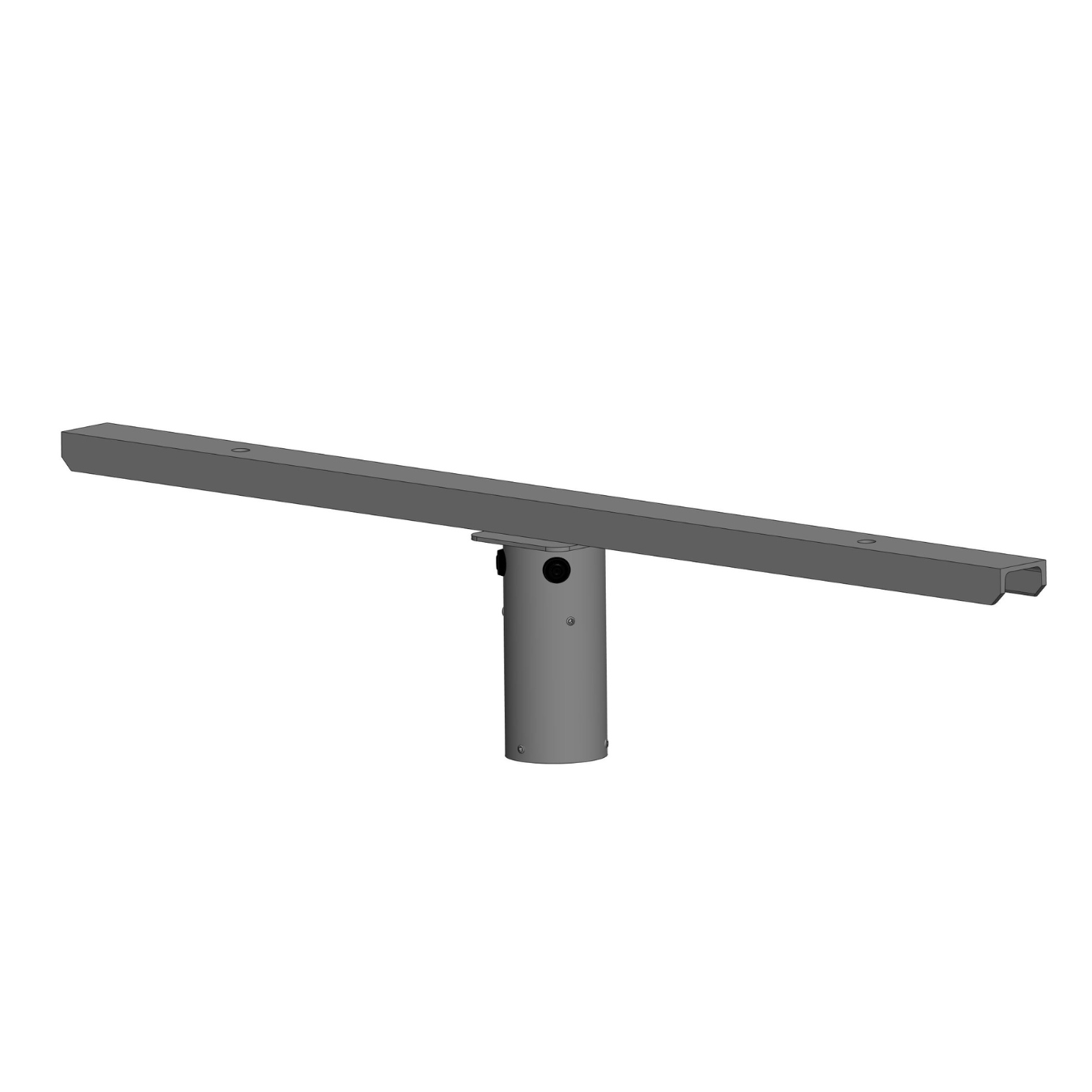

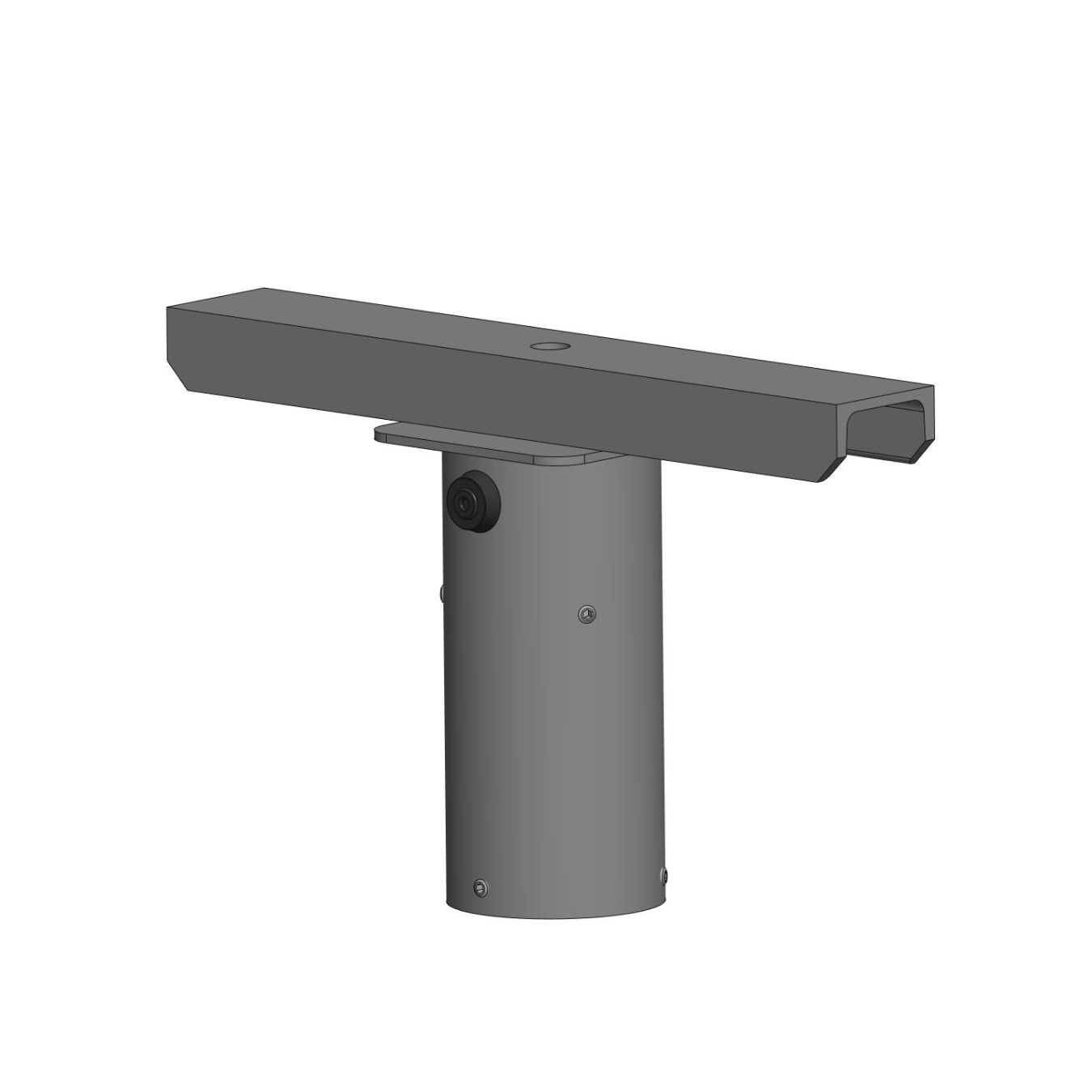

Consoles

For mounting floodlights, number of floodlights: 1 to 5

Models

Tags: verzinkt konsolen stahl Fluter

Design:

  • Made from high quality steel tubes
  • Suitable for mounting floodlights
  • Membrane entry for cable 5-9 mm
  • Fastened to mast spigot with stainless steel locking screws
  • Inside and outside hot-dip galvanised in accordance with ÖNORM EN ISO 1461
  • Construction in accordance with EN 40-2, CE certified in accordance with DIN EN 1090
  • Additional coating possible in RAL and DB colors of your choice

Application:

For mounting floodlights

Consoles for headlights

Type Number of
floodlights
for mast spigot (mm) Console width (mm) Weight (kg) Technical
drawing

K1-60

K1-76

K1-89

K1-108

K2-76

K2-89

K2-108

K3-108

K4-108

K5-108

1

1

1

1

2

2

2

3

4

5

60

76

89

108

76

89

108

108

108

108

300

300

500

500

1100

1300

1500

2400

1600

2400

1,9

2,7

4,3

5,2

6,5

8,4

16,5

26,4

22,3

31,0

PDF

PDF

PDF

PDF

PDF

PDF

PDF

PDF

PDF

PDF
