Blackout & Civil defence mast for communities!
To be prepared for emergencies, think ahead with us

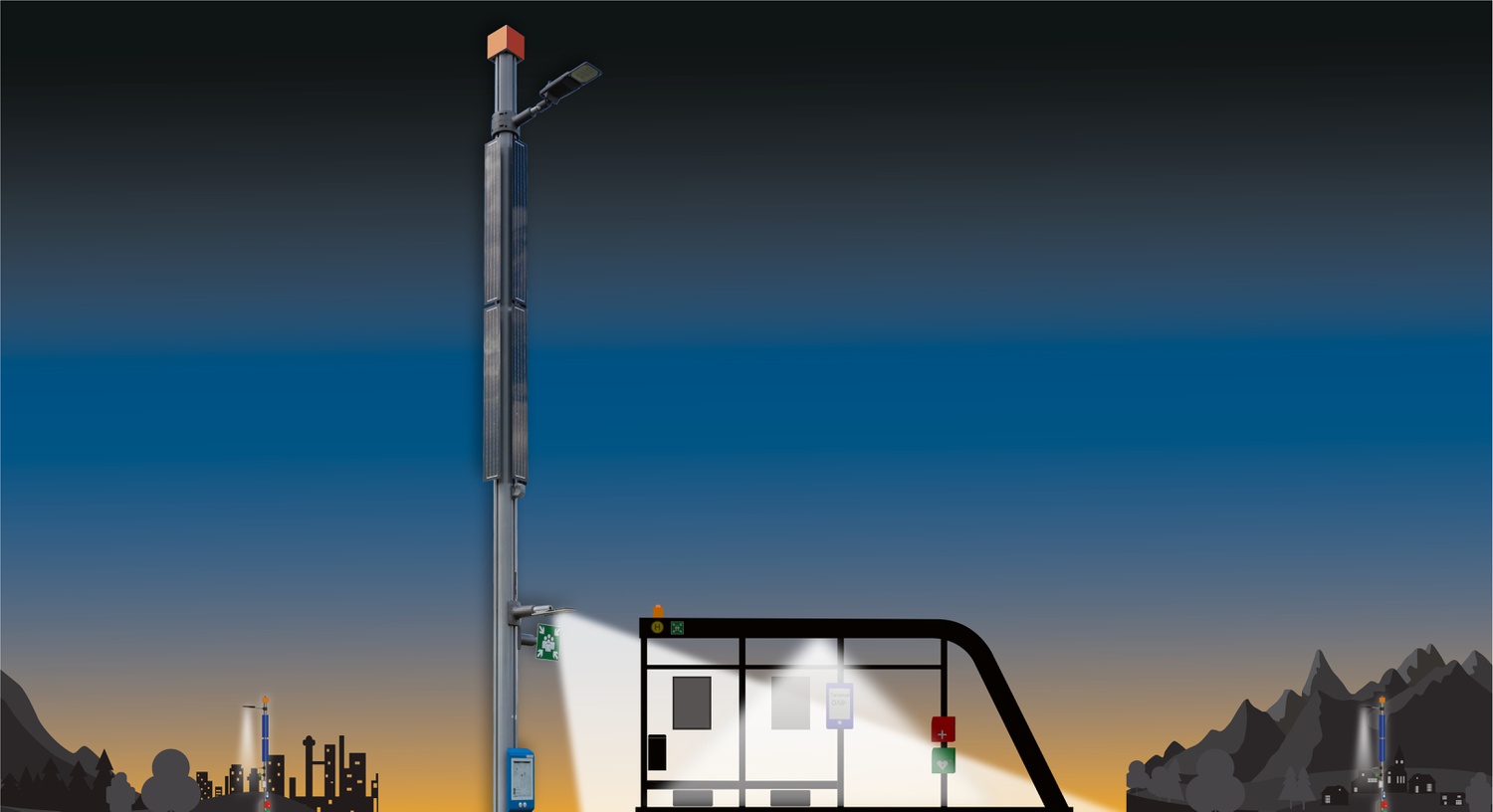

Natural disasters or widespread power and infrastructure failures can pose challenges to cities and communities. We have therefore developed an intelligent, energy self-sufficient and permanently functional information mast. In the event of an emergency, this mast acts as a safe assembly and communication hub. In the event of a blackout, a power failure, the mast is identified by flashing signals. It provides information and support with all its emergency supply functions. For further information please do not hesitate to contact us by email: vertrieb@fonatsch.at
Light point height:
Maximum 8 m
Features:
- Autonomous power generation
- Illuminated assembly point
- Communication meeting point
- Flashing light for better recognition - orange LED 12 V
- Bracket with LED light 4000 K, 8000 Lm, 230 V
- Light ring green, LED 3 W, 12 V
- PV modules for self-sufficient power generation - 6 modules á 90 wP
- Aluminium mast, RAL coated
- Autonomous emergency light LED 1450 lm, 4000 K
- Meeting point sign 250 x 250 mm
- Analogue display panel A3, 297 x 420 mm
- Battery pack, charge controller, remote monitoring
- USB & 230 V charging option (lockable)
Optional extensions:
- DAB+ terminal
- First aid kit
- Defribillator
On-site projects:
- Pre-cast mast foundation, *optional: Pre-cast concrete foundation
- 230 V permanent power supply and earthing connection
- SIM card for data transmission and remote monitoring

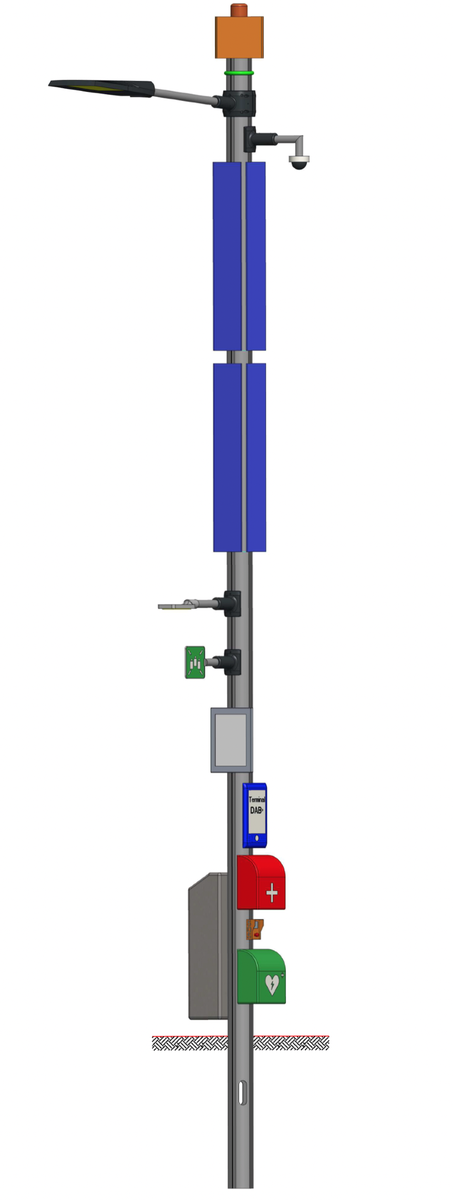

Orange flashing light incl. siren
LED 12 V
Light ring - green
LED 3 W, 12 V
Bracket with street light
LED dimmable, 4000 K, 8000 Lm, 230 V
PV modules for autonomous power generation
6 modules á 90 wP
Autonomous emergency light
LED 1450 lm, 4000 K
Meeting point sign
250 x 250 mm
Battery pack, Charge controller, Remote monitoring, USB & 230 V charging option
lockable
Camera*
Recording when using emergency care and SOS button
DAB+ terminal
with EWF function (Emergency Warning Functionality) barrier-free operation via text-to-speech, 13.3 inch, DAB+ reception in Austria - see map at www.radiotechnikum.at
First aid kit
with alarm-protected climate box, radio monitoring ÖNORM Z1020 Typ 1
Defibrillator
With alarm-protected climate control box, radio monitoring, DIN 6060 1-2-4/11
Brochure
In German language. For further information in English, please do not hesitate to contact us.
Download (5125 kB)
